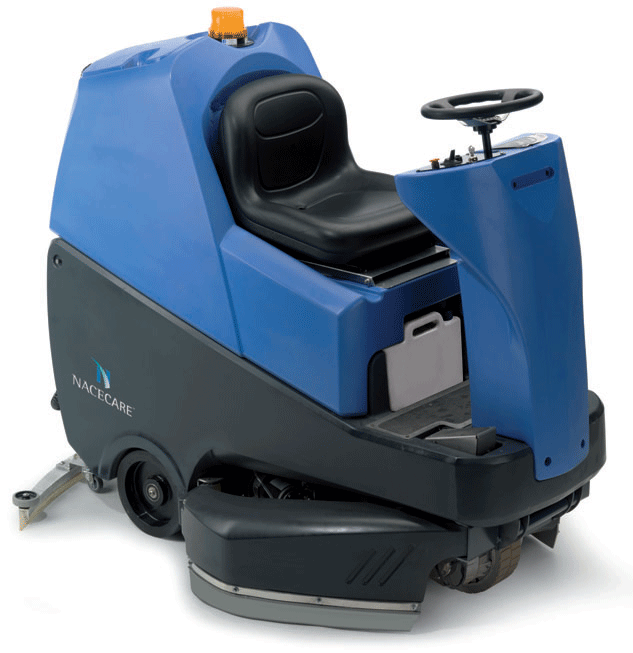

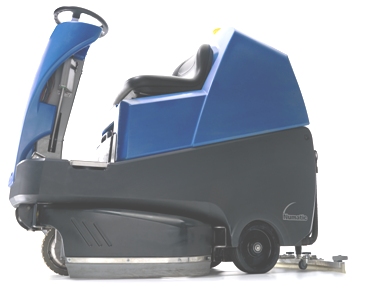

TTV 678 NaceCare, Rider Scrubber with Adjustable Scrubing Deck.
Three cleaning sizes One Machine: 26", 30", 34"
The TTV 678 Rider Automatic Scrubber Includes:
On-Board Charger, 6Volt 100Ahr GEL Batteries (maintenance free) 6-Each, Pad Drivers, Squeegee Assembly, Owner's Guide, and 2-Year Warranty on Parts & Paid Labor
Vario, Three cleaning sizes One Machine: 26", 30", 34"
The new TTV 678 Twintec Vario is a careful blend of proven features and powerful new technology.
The TwinTec Vario “three in one” (3 in 1) design has proved itself to be almost the perfect balance between sound common sense engineering and innovative and truly functional technology.
Yes, one machine which can be set to 3 different working widths: 26", 30" and 34" and all at the flick of a simple selection lever. This doesn’t even need tools – anybody can do it at any time. You want it wide – fine... you want it narrow – 30 seconds is all that it takes.
The unique arrangement of 3 independent scrubbing heads which, by virtue of a simple adjustment mechanism, can provide a choice of scrubbing widths which, with the addition of a selection of brushes and pads, can provide customised performance on almost any surface application.
KEY FEATURES:
• Vario 3 in 1 Brush System - Simple adjustment mechanism provides a choice of scrubbing widths suitable for almost any surface.
• Easy Dosing Pre-sets - Correct chemical dosing for every task.
• Complete Cleaning Control - Operator has full control of cleaning speed, brush speed, water flow and chemical dosing.
• Simple Operator Control - Soft touch dashboard control system.
• Easy Maintenance - Easy access to batteries and fuses for service purposes and brush change is simple with the swing out brush cover.
• On-board Charger - Simple and convenient, just plug and go. Fully sealed low maintenance Gel batteries.
• Small Turning Radius - Means great cleaning even in tight spaces.
• Safety Features - Emergency stop button, power off removable key, horn button and hazard warning light and built in reversing alarm are just a few of the many safety features included.
FEATURES:
• Three sizes, ONE machine.
• Adustable Scrubbing Width: 26" - 30" - 34"
• 32 Gallon Solution Tank.
• 32 Gallon Recovery Tank Capacity.
• Fully adjustable flow rate from 0.25 gpm to 1 gpm.
• Patented pop-on/pop-off brushes and pad drivers.
• Adjustable brush pressure and speed.
• 6 GEL batteries standard with 8 as an option, low voltage shut off.
• Quick release squeegee blades for easy cleaning.
• Tear away squeegee.
• Two squeegee sizes 30" and 40" come with each machine.
• Onboard chemical dispensing system allows for 32:1, 64:1, 96:1 and 128:1 chemical metering.
• On-Board Smart Charger and Batteries.
• Will accept optional off aisle kit.
Three Sizes One Machine
26" : 650 mm 30" : 750 mm 34" : 850 mm
Three sizes, one machine: 26", 30" and 34" – with on-board storage for 2 squeegee sizes –
30" and 40" – it will fit through any door. You can now handle any job large or small with one machine.
Simply pull a pin to adjust the brush deck. The brushes will automatically move in or out to the correct width.
6 x 100 ah gel standard batteries provide a run time of 3.5 hours. |
2 optional extra gel batteries increase the run time to 4.5 hours.
|
26", 30", 34" Three Adjustable Scrubbing Sizes, ONE machine:
26", 30" and 34" Adjustable Scrubbing Deck (no tools required),
Simply pull a pin to adjust the brush deck. The brushes will automatically move in or out to the correct width. With on-board storage for 2 squeegee sizes 30" and 40" – it will fit through any door. You can now handle any job large or small with one machine.
Run Time:
Included 12Volt 100Ahr GEL Batteries (maintenance free) 6-Each provide a run time of 3.5 hours.
2 optional extra Gel batteries increase the run time to 4.5 hours.
SPECIFICATIONS: |
Technical Data: |
TTV 678 |
Adjustable Cleaning Path: |
26" to 30" to 34". |
Pads /Brushes Size: |
12" x 3 |
Solution Tank Capacity |
32 Gallon |
Recovery Tank Capacity: |
32 Gallon |
Chemical Container: |
1 Gallon |
Chemical Mixture Rate: |
32:1, 64:1, 96:1, 128:1 |
Water Flow Rate: |
1.0/ 0.8/ 0.5/ 0.25 gpm |
Brush Pressure: |
160 Lbs |
Brush Speed: |
150 to 200 rpm |
Brush Motor: |
3 x 24Volt 400Watt |
Traction Drive Motor: |
600 Watt |
Working Speed: |
0.3 to 4.3 mph |
Maximum Gradient: |
11º |
Vacuum Motor: |
24 Volt, 400 Watt |
|
|
Working Capacity: |
64,045 sq.ft./hr. |
Run time: |
3.5 Hrs (6-Batteries) 4.5 Hrs (8-Batteries) |
Batteries Included: |
12Volt 100Ahr GEL 6-Each Maintenance Free |
Weight: |
970 Lbs |
Dimensions: |
66" x 56" x 41.5" |
Click here for additional product specifications.
